NON-TSO AirSpeed indicator with adjustable stall warning light
TA-NON-TSO wide range airspeed indicator is a digital
airspeed indicator with analog schema. It has special future as
adjustable stall warning light. It has standard I/O serial port which
supports AT commands. Also via this serial I/O port it broadcasts raw
and calibrated data to provide information on avionic bus for such a
system like flight data recorder.
Via AT-Commands the avionic maintenance user can check indicator needle
or re-calibrate it, also set the stall warning light limitation and re
calibration of internal airspeed sensor.
This instrument has 3 standard pin on 8 cm surface schema. It needs 9 V
DC up to 15 V DC power supply from main avionic power bus.
Also Toucan Avionic provides standard transceiver port to show the
avionic bus airspeed number from the other digital port.
TA-NON-TSO Airsspeed indicator package does content :
3 meters airspeed standard pipe

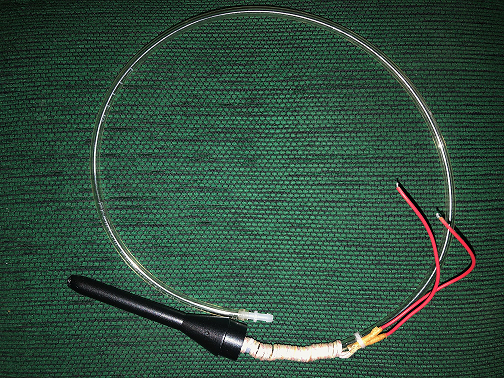

External dynamic pitot port with heater ( 12 V DC )
External Km/h AirSpeed indicator
( optional ) with digital link

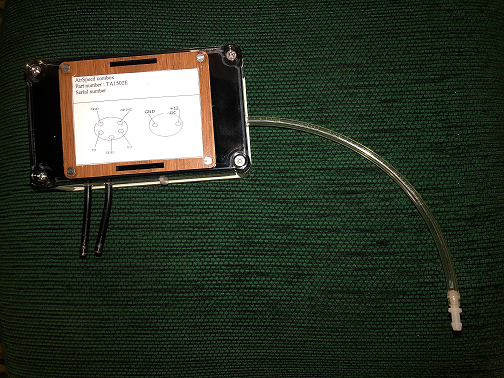

Dynamic and static ports combox
User manual
USB connector for PC/ANDROID
Serial monitoring application for Windows and Andoid

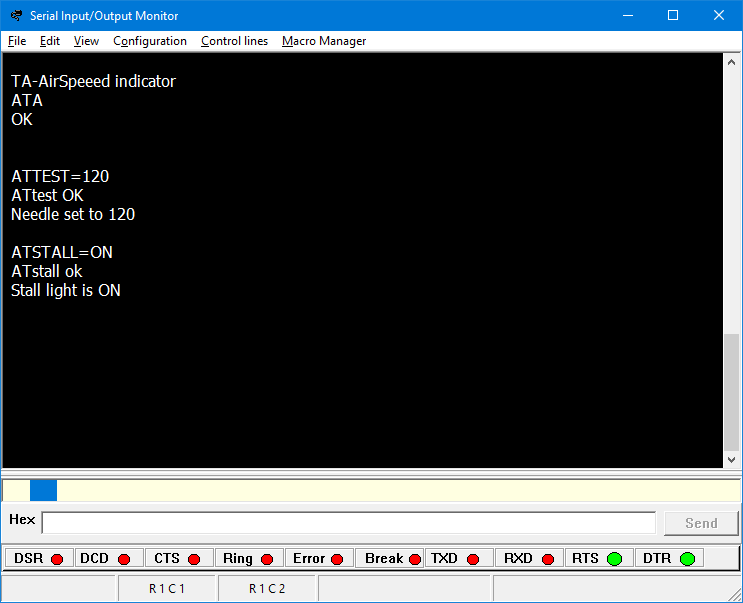

Sample of AT-Command communication :
